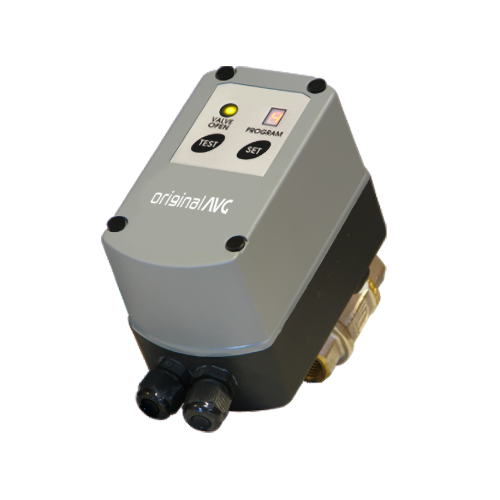

AVG 37
AVG 37 is the ultimate auto drain for the harshest conditions. This auto drain can withstand extreme volumes of rust and dirt without getting blocked and clogged.
- Airline Condition: Extremely dirty
- Applications: Air receiver tanks, drops
- Operating Pressure: 0-40 bar
- Drain Type: Electronic Timer Drain
- Power Connection: Cable and plug
- Serviceable Valve: Yes
- Inlet/Outlet Port: ½” BSP
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Max. Compressor Capacity | Any size |
| Operating Pressure | 0-40 bar | 0-600 psi |
| Supply Voltage Options | 115VAC, 230VAC, 24VDC |
| Medium Temperature | 1-60°C | 34-140°F |
| Ambient Temperature | 1-55°C | 34-131°F |
| Timer Cycle Range (On/Off) | 7 seconds to 15 minutes ON / 4 minutes to 24 hours OFF |
| Actuator PCB | SMD technology, ensuring consistency in production |
| Timer Cycle Indication | Bright LED illumination, LED program indicator |
| Test Feature | Yes |
| Valve Type | 2/2 way, motorised ball valve |
| Valve Orifice | 12mm |
| Valve Seals | FPM and Teflon |
| Inlet/Outlet Connection | ½" BSPT |
| Inlet Connection Height | 0.4" |
| Serviceable Valve | Yes |
| Valve Housing Material | Brass nickel plated, ball valve stainless steel |
| Power Connection | Cable and plug |
| Environmental Protection | NEMA4 (IP65) |
| Remote Switch Option | Yes |
| California Proposition 65 | See manual |
