EXPEL Automatic Float Drain

The EXPEL automatic float drain discharges liquids and particulates extracted from a compressed air system through a range of compressed air filters.

Part number: 6100-023-AA

The new EXPEL Automatic Float Drain is designed to discharge liquids and particulates extracted from your compressed air system by the EXPEL range of compressed air filters.

Material (Housing): Polycarbonate

Max. Drainage Capacity: 84 litres condensate per hour

Pressure Range: 0-16 bar | 0-230 psi

Inlet Connections: 1/2” (BSP or NPT)

Outlet Connection: 6mm Diameter

Max Working Temperature: 85°C

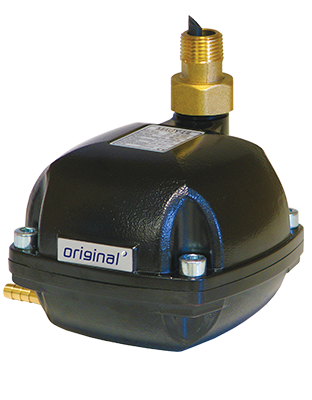

AVG MAG-Drain

The AVG MAG-Drain automatically removes condensate from compressed air filters without any loss of compressed air during the condensate discharge cycle. The unit is best suited to applications where power is not available, too expensive or not reliable.

To find out more about how all of these products can save you money while boosting productivity and satisfying your customers, call +44 (0)345 50 50 222.

Part number: 5000-200-AA

The AVG MAG-Drain removes condensate from compressed air filters. The operation is automatic and there is no compressed air lost during the condensate discharge cycle. The AVG MAG-Drain uses magnetic forces to operate the direct acting valve assembly and is ideally suited in applications where power is not available, too expensive or not reliable.

Material (Housing): Corrosion resistant aluminium, EP coating

Max. Filter Capacity: Unlimited

Max. Drainage Capacity: 200 litres condensate P/H | 53 gallons per hour

Pressure Range: 0-16 bar | 0-230 psi

Valve Type: 2/2 way, direct acting

Valve Seals: FPM

Inlet Connections: 1/2” (BSP or NPT)

Outlet Connection: 1/8” BSP

Inlet Height: 10cm | 4”

Medium Temperature: 1-50°C

Ambient Temperature: 1-50°C

Serviceable Valve: Yes

AVG MAG 11 Drain

The AVG MAG-11 is the optimum choice in compact energy saving condensate drains, typically installed in (refrigerated) dryers and under piston compressors.

Unlike timer or electronic drains, which require electricity to operate, the MAG-11 operates using a magnet level sensor providing energy saving zero air loss operation without the need for a power source.

Perfectly suited for coolers, refrigerated dryers, liquid separators and piston compressors, the MAG-11 uses a magnetically operated 2/2-way direct acting valve assembly, discharging the condensate from your compressed air system without losing any of your valuable compressed air.

The MAG-11 meets the demand of virtually any application, regardless of the condensate flow. It fits in any application, regardless of size, without any set up or adjustment.

MAXIMUM FILTER CAPACITY Unlimited
MAXIMUM DRAINAGE CAPACITY 37.8 gallons per hour at 230 psi (16 bar)
148 litres per hour at 230 psi (16 bar)
PRESSURE RANGE 0 – 230 PSI (0 – 16 bar)
VALVE TYPE 2/2 way, direct acting
VALVE SEALS FPM
INLET CONNECTIONS 1/2″ NPT (2*)
OUTLET CONNECTION 1/8″ with hose pipe connector
INLET HEIGHT 3.9″
MEDIUM TEMPERATURE 34 – 122 °F
AMBIENT TEMPERATURE 34 – 122 °F
SERVICEABLE VALVE Yes
ENVIRONMENTAL PROTECTION NEMA6 (IP68)
HOUSING MATERIAL EP coating
