EXPEL 60 M
The Expel 60 compressed air filtration system REPLACES:
- 1 micron particle filters
- Water separators
- Coalescent filters
Specifications
| Flow Rate For a 7 bar(g) System | 6.7-102 m3/hr | 4-60 cfm | 141-1699 l/min |
| Operating Pressure | 1-15 bar(g) | 15-217 psi(g) |
| Operating Temperature | 0 to + 80⁰C | 32-176⁰F |
| Maximum Recommended Inlet Temperature | 35⁰C | 95⁰F |
| Liquid water removal | Yes |
| Oil emulsion removal | Yes |
| Particulate Removal | 1 micron |
| Inlet/Outlet Connection | 1”, 1 ½” or 2” BSPT |
| Drain Connection | 1/2” (m) BSPT |
| Product Dimensions - Framed | 585 x 380 x 290mm |
| Material (Housing) | Stainless Steel 304 |
| Material (Internal) | ABS |
Accessories
| AVG Float drain | P/N6100-084 |

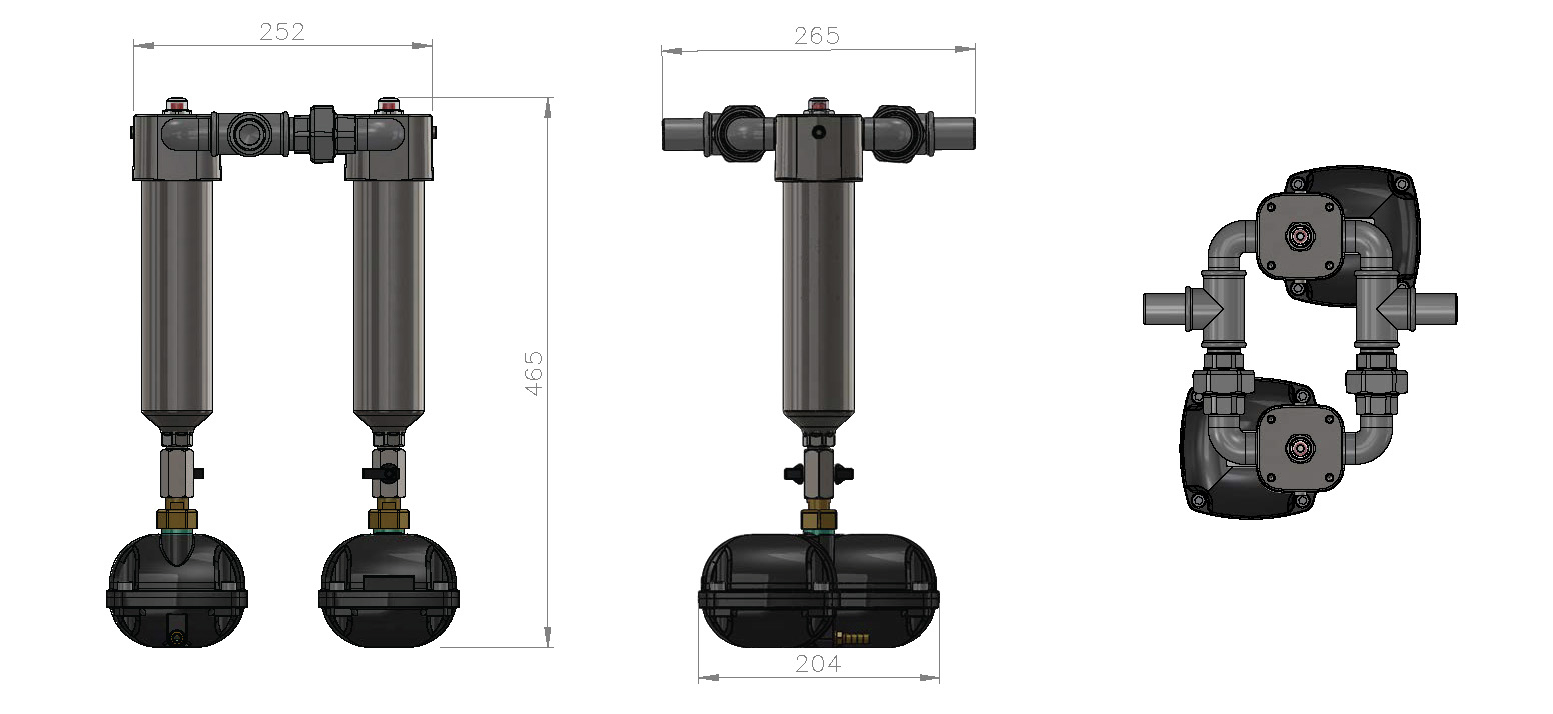

Drawing not to scale (mm)
We offer various auto-drains options.
